Product Description

Specification

Values

Rated Voltage

240VDC

Rated Current

As request

Lead Size

Color coded,silver plated copper,TEFLON wire

Lead Length

As request

Dielectric Strength

500VAC@50Hz. 60s

Insulation Resistance

250MΩ/250VDC

Electrical Noise

≤10mΩ

Type

NO.of Signal circuits

NO.of power circuits

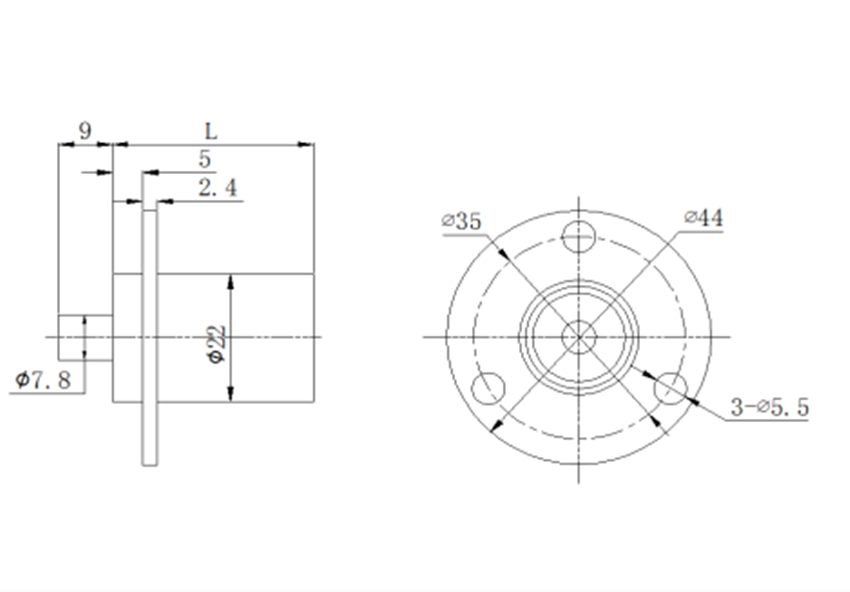

L

5A

10A

20A

OMTP022-12-2P-5S

5



2



25.6

OMTP022-12-2P-3S

3





2

25.6

OMTP022-12-6P



6





25.6

OMTP022-12-4P





4



25.6

OMTP022-18-2P-7S

7





2

33.4

OMTP022-18-3P-2S

2





3

33.4

OMTP022-18-8P



8





33.4

OMTP022-18-6P





6



33.4

OMTP022-18-4P







4

33.4

OMTP022-24-3P-8S

8





3

41.2

OMTP022-24-4P-3S

3





4

41.2

OMTP022-24-5P







5

41.2

OMTP022-24-8P





8



41.2

OMTP022-24-12P



12





41.2

OMTP022-30-2P-20S

20





2

49

OMTP022-30-3P-15S

15





3

49

OMTP022-30-4P-10S

10





4

49

OMTP022-30-6P







6

49

OMTP022-30-10P





10



49

OMTP022-30-15P



15





49
